Powering the Next Generation of Semiconductor Test

Pluto 2

Pluto2 is a highly integrated System on a Chip pin electronics solution incorporating 8 independent channels of:

  • DPS / PMU / VI
  • Pin Electronics
  • Resistive Load

The interface, the control, and the I/O are digital; all analog circuitry is inside the chip. Eight complete and independent
channels are integrated into each chip. For most tester applications, no additional analog hardware needs to be developed or used on a per pin basis.

pluto design

Features

  • Pluto Compatible
  • Per Pin DPS / PMU
    • FV, FI, MV, MI – 4 Quadrant Operation
      • 64 mA Imax in FV / MI
      • 32 mA Imax in FI / MV
    • 8 Current Ranges
      • (32 mA, 8 mA, 2 mA, 512 μA, 128 μA, 32 μA, 8 μA, 2 μA)
    • 14V FV Range
    • FI Voltage Clamps
    • FV Current Clamps
    • Per Pin Monitor
    • Central (Per Chip) Monitor
  • Pin Electronics Driver and Comparator
    • 2 Level Driver w/ On Chip Buffers
    • 14V Driver Output Swings
    • 10 MHz Driver Operation
    • 16V Comparator Input Voltage Range
    • Extremely Low Input Leakage over a 16V Range
  • Ganging Capability
    • High current applications
    • No limit on ganged Imax
    • Gang control circuitry built in
  • 3 Bit Serial CPU Port
  • On Chip DAC to Generate DC Levels
    • 10 DC Levels per Channel (16 Bits / Level)
    • On Chip Offset and Gain Correction
    • Ability to shift voltage ranges up and down
  • Package/Power Dissipation
    • Lead Free

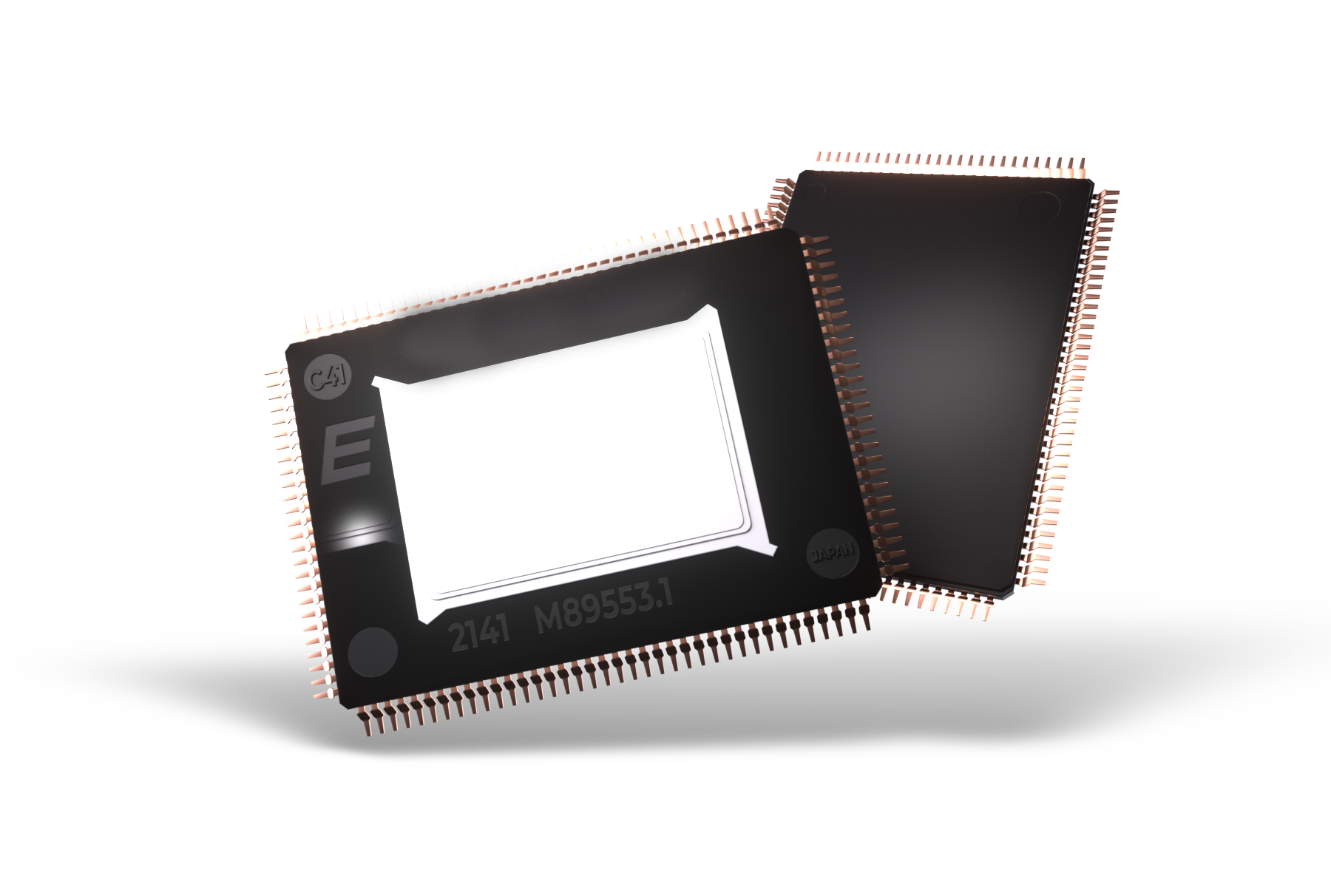

    • 128 Lead, 14 mm X 20 mm, TQFP w/ Heat Slug
    • Pdq ≤ 125 mW / Channel; Pdq ≤ 1 W / Chip
    • On-Chip Thermal Monitor

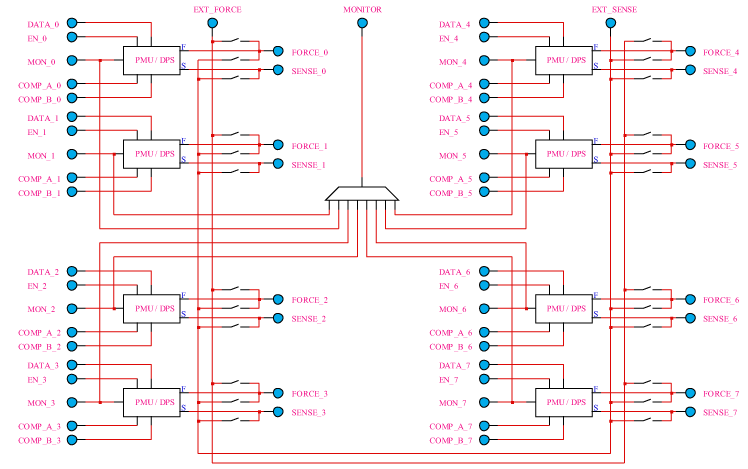

pluto 2 diagram
